BRAVO 26 Ports all Gigabit Switch

No.BR-524G-2SFP

It is a high performance 24 port 10/100/1000Mbps RJ45+2 port 1.25G SFP Ethernet switch, it provides one full wire-speed gigabit networking connection to your working group or server ,play and plug ,this flexible non-blocking frame make user not subject to the limit of bandwidth and media network. It support half-duplex flow control and full-duplex back pressure ,each port support auto-adaptive function, provide an economical, practical, high cost-effective sharing device for broadband LAN .adopting store-and-forward mode ,can effectively isolate broadcast storm ,reduction error /wrong package, avoiding network congestion and network conflict .LED panel can detect the condition of each port and whole system

Description
Parameter

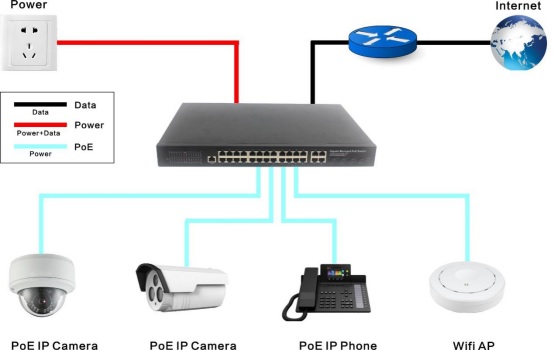

Application
Download

1. Comply with IEEE802.3,IEEE802.3u and 802.3ab sandard

2. 24 10/100/1000Mbps auto-adaptive RJ45,support Auto-MDI/MDIX+2*1.25G SFP

3. Support 8K MAC address

4. Support stacks

5. Support IEEE 802.3x half-duplex and full-duplex back pressure mode

6. Non-blocking exchange frame, full wire-speed transmission and max.throughput filter the data packet

7. Support MAC address, auto-adjust transmission mode and max.throughput filter the data packet

8. Support MAC address, auto-adjust transmission mode and transmission rate Mini appearance dimension design

9.LED indicators, link and activity, provide the simple indication of operation status and troubleshooting

10. AC100-240V power supply

Standard	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX fast Ethernet IEEE 802.3ab 1000Base-T gigabit Ethernet ANSI/IEEE standard 802.3 auto-adjust IEEE 802.3x flow control
Filter and transmission rate	Ethernet 10Mbps (half -duplex)20Mbps (full-duplex),10Mbps:14,880pps Fast Ethernet 100Mbps(half-duplex ),200Mbps (full-duplex), 100Mbps:148800pps Gigabit Ethernet 2000Mbps (full-duplex),1000Mbps:1488000pps
Topology	Star
Network Media	10Base-T: 3UTP or higher ((≤100m) 100Base-TX: 5 UTP(≤100m) 1000Base-T: 6UTP (≤100m) SFP: 1.25G SFP with fiber
Port No.	24×10/100/1000M RJ45 port+2*1.25G SFP
Uplink	all ports can act as Uplink port
Transmission mode	store-and -forward
Temperature	Operation temperature : 0°C~40°C (32 F~104 F) Storage temperature : -40°C~70°C (-40 F~158 F)
Humidity	Operation humidity :10%~90% ,non-condensingt Storage humidity :5%~95%,non-condensing
Bandwidth	56G
LED indicators	one power source indicator ( red LED ) 8 data LED indicators (Link/Act: green LED)
Power supply	AC 100-240V
Material (case)	Metal
Certification	CE ROHS

TW-524G-2SFP Datasheet Download
