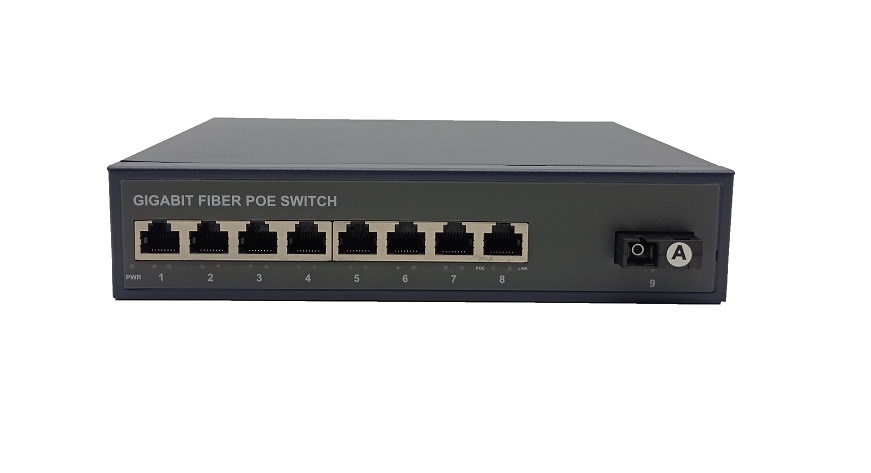

8-Port 10/100/1000Mbps PoE switch with 1SC

No.TW-808GP-1GF

To fulfill the demand of High Power PoE for network applications with Gigabit transmission, TW-808GP-1GF PoE Gigabit Ethernet Switch is an ideal solution. Each 10/100/1000Mbps port of the TW-808GP-1GF features IEEE 802.3af and IEEE 802.3at Power over Ethernet (PoE) that combine up to 96-watt PoE budget on the whole system, It is designed specifically to satisfy the growing demand of higher power consuming network PD (powered devices) such as PTZ (Pan, Tilt & Zoom) / speed dome network cameras, multi-channel (802.11a/b/g/n) wireless LAN access points and other network devices by doubling PoE power, more than the current conventional 802.3af PoE. All RJ45 copper interfaces of the TW-808GP-1GF support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. It also supports standard auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. 1 extra 1.25Gbps SC interface can be used for uplin

Description
Parameter
Application
Download

Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T

8-Port 10/100/1000Mbps supports 52V DC power to PoE Powered Device

1 1.25Gbps fiber optical port

Complies with IEEE 802.3af/802.3at Power over Ethernet End-Span PSE

Up to 8 IEEE 802.3af devices powered

Supports PoE Power up to 15.4 watts for each PoE port

Up to 4 IEEE 802.3at devices powered

Supports PoE Power up to 30 watts for each PoE port

120-watt PoE budget

Auto detects powered device (PD)

Circuit protection prevents power interference between ports

Remote power feeding up to 100m

Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X

Features Store-and-Forward mode with wire-speed filtering and forwarding rates

IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation

Integrates address look-up engine, supporting 8K absolute MAC addresses

2M packet buffer

10K Jumbo frame supports at 1000Mbps duplex mode

IEEE 802.1Q VLAN packet transparency support

Automatic address learning and address aging

Made of metal, desktop size and wall-mount desig

Item		Description
Model		PSE-808GP-1GF
Power Supply	Power Supply Mode	Power adapter
	Voltage Range	AC 100～240V
	Power Consumption	The device <5W， POE power supply <120W
Network Port Parameter	Network Ports	1～8 Ports: 10/100/1000Mbps Ethernet port, adaptive control Uplink optical fiber port：1.25Gbps
	Transmission Distance	1~8 Ethernet Port：0~100m Uplink optical fiber port：0-120KM
	Transmission Media	1~8 Ethernet Port：Cat5e/6 standard UTP cable， Fiber: SC interface optical fiber(single mode ,single fiber)
	POE Agreement	IEEE802.3 af/at standards
	PoE Power Supply Mode	End-span method
	PoE Power Supply Wattage	Each port≤30W,Whole device<120W
Network Switch Specification	Network Standard	IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T
	Swap Mode	Store-and- forward
	Switch Capacity	18Gbps
	MAC Address List	8K
Status Indicators	Power Indicator Light	One power light （green）
	Optical Fiber Port Indicator	One fiber link indication light ( green), Green light keeps on when the fiber port is well connected
	PoE Indicator	1~8 PoE indicator light（yellow）
	PoE Network Port LED	1~8 port ( green light on RJ45 jack) Keeps on when normally connected, Blinking when transceiver data
Protection Level	Surge Immunity	Level 3, executive standard：IEC61000-4-5
Protection Level	Electrostatic Protection	1a touch electric discharge: level 3 1a Air discharge: level 3 Executive standard：IEC61000-4-2
Operating Environment	Working Temperature	-10℃～55℃
	Storage Temperature	-40℃-85℃
	Humidity(non-congeal)	0~95%
Mechanical Attributes	Dimensions (LWH)	202X140X45MM
	Color	Black
	Weight	1.5kg
Reliability	Mean time between failures （MTBF）	＞50000h
